Marafy Project Saudi Arabia: Jeddah’s Smart Waterfront Infrastructure Development
Introduction to the Marafy Project Saudi Arabia

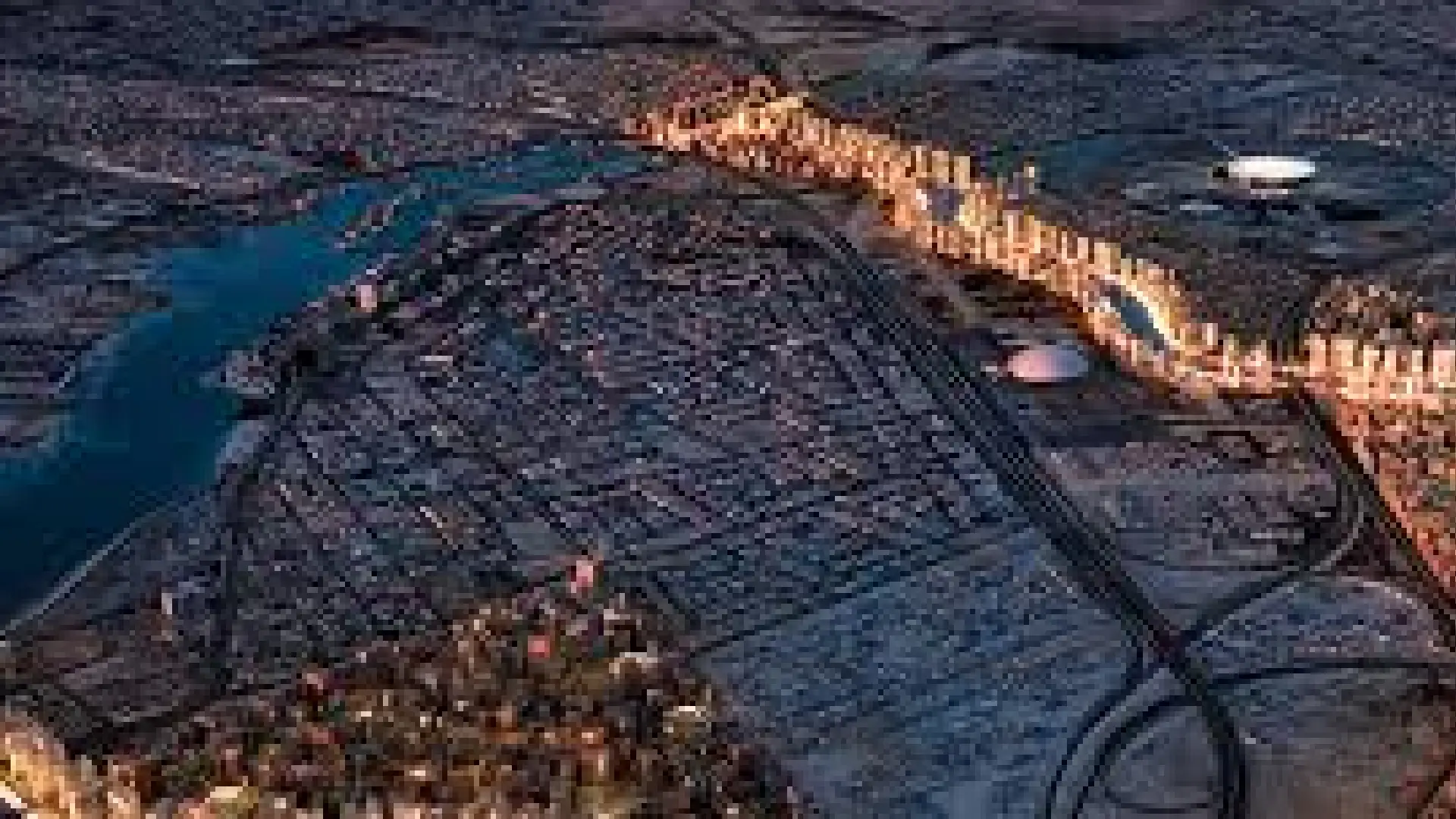

Marafy project Saudi Arabai –Currently underway in Jeddah, Saudi Arabia, is the Marafy Project, which represents one of the most creative urban waterfront developments being built in that country’s rapidly growing metro area. This large-scale, mixed-use development will completely revamp northern Jeddah into a modern commercial, residential and tourist destination with a world-class canal-operated transportation system linking it all together.
The Marafy Project also aligns itself perfectly with the national goals set forth in the country’s Saudi Vision 2030, which aims to diversify the economy, improve urban infrastructure and develop sustainable cities throughout Saudi. This means providing new and state-of-the-art modes of transportation, creating residential communities, developing hotel and shopping options, and building a variety of utility systems, all within one smart urban environment.
A primary characteristic of this venture is the proposed 11-kilometer navigable waterway to be built from the Red Sea to inland areas of Jeddah. The planned waterway will allow for the possibility for a full range of activities via water such as passenger water taxis or pleasure craft, amongst many other water-based activities. A great deal of underground utility work will be required to provide the water supply, drainage, communication and power for this extensive infrastructure development.
The ability to create a successful Marafy Project in Saudi Arabia is dependent upon the creation of reliable infrastructure systems made from strong materials such as high density polyethylene (HDPE) pipe, polyvinyl chloride (PVC) conduit, precast concrete (PC) drainage pipe and telecommunication duct systems. All of which will serve as the basis for successful completion of this incredible project.
Infrastructure Components of the Marafy Project Saudi Arabia
The Marafy Project located in Saudi Arabia has numerous types of complex infrastructure designed at a relatively high density with the purpose of providing necessary services for high density population and commercial activities. Each type of infrastructure will have different design criteria depending upon various types of environmental conditions such as high levels of heat, elevated levels of humidity (due to proximity to the water) and often very heavy levels of rainfall during certain times of the year.
The Marafy Project has already constructed many of the required components of infrastructure to support the population and commercial development of this area. However, it will also be important to establish other essential infrastructure that will have a direct relationship to the transportation facilities that will be constructed as part of the Marafy Project.
Transportation infrastructure is one of the most critical components of this project. The following represents an incomplete list of potential transportation/Economic Development alternatives that can be accomplished through the Marafy Project transportation/infrastructure system.
– Canal system
– Road and bridge networks
– Pedestrian and/or bicycle based pathways
– Parking and traffic management systems
In addition to the various transportations infrastructures mentioned above, there will also be a need to construct both utility infrastructures and drainage infrastructures in order for all of these transportations infrastructures to function successfully and therefore provide the intended services.
Water Supply and Distribution Systems
The infrastructure of Water Supply Systems provides potable (drinking) water to both residential and commercial Structures.
The main components of a Water Supply Systems include:
-Pipelines (Transmission Facilities)
-Pumping Facilities
-Storage Facilities
-Distribution Facilities
Water Supply Systems generally use HDPE pressure pipes because of their strength and ability to resist corrosion.
Sewer and Wastewater Systems
Wastewater infrastructure safely transports sewage from buildings to treatment facilities.
Key system requirements:
- Leak prevention
- Chemical resistance
- Structural durability
- Long service life
These networks commonly use:
- PVC sewer pipes
- HDPE gravity pipes
Stormwater and Drainage Systems
Systems designed for collecting and channeling excess rainwater away from structures are called “stormwater drainage systems“.
These systems consist of a combination of surface drainage channels, underground storm sewer systems, storm drainage connections along canals, etc. Most of the applications utilize corrugated HDPE pipe as the main method of conveying the excess water.
Telecom and Electrical Infrastructure
At the present time, high-tech communication and electricity systems are essential requirements for new home and apartment projects.
Technology you need includes:
– Fiber optic network systems
– Electric cable delivery
– Utilities conduit systems
– Telecommunications duct systems
Commonly used to prevent damage to cabling and to provide safe operation of these systems are PVC conduits and HDPE ducts.
Role of Pipes in the Marafy Project Saudi Arabia
The proper design and installation of a pipe system is essential for the Marafy Project in Saudi Arabia to function properly. Pipelines provide critical services to the infrastructure, including providing a source of clean drinking water, disposing of wastewater, and transmitting telecommunications data.
The primary types of pipe applications that will be utilized as part of the Marafy Project in Saudi Arabia include:
(1) pipe for water distribution
(2) pipe for wastewater transport
(3) pipe for stormwater drainage
(4) pipe for protecting electrical cables
(5) pipe to construct telecommunication network
(6) pipe for irrigation systems.
All pipes used in the applications described above are required to meet and exceed applicable performance and safety standards.
Types of Pipes Used in the Marafy Project Saudi Arabia
HDPE Pipes in the Marafy Project Saudi Arabia
HDPE pipes are the most commonly used type of pipe in the Marafy Project, Saudi Arabia due to their high levels of durability, flexibility, and resistance to corrosion.
Some examples of how HDPE pipes can be used include:
– Water supply pipelines
– Irrigation systems
– Sewer systems
– Telecom ducts
– Utility infrastructure
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Grade | PE100 (High-Density Polyethylene) |
| Pressure Rating | PN6, PN10, PN16 |
| Diameter Range | 20 mm to 1200 mm |
| Operating Temperature | –20°C to +60°C |
| Service Life | 50 to 100 years |
PVC Pipes in the Marafy Project Saudi Arabia
Polyvinyl Chloride (PVC) pipes are commonly used in drainage and electrical conduit applications.
Applications
PVC pipes are used for:
- Sewer systems
- Drainage networks
- Electrical conduits
- Irrigation pipelines
Technical Specifications
| Parameter | Specification |
|---|---|
| Material Type | PVC-U (Unplasticized Polyvinyl Chloride) |
| Diameter Range | 20 mm to 400 mm |
| Operating Temperature | 0°C to 60°C |
| Service Life | 40 to 50 years |
Corrugated HDPE Pipes in the Marafy Project Saudi Arabia
Corrugated pipes are designed for stormwater and drainage applications.
Applications
Corrugated pipes are used for:
- Stormwater drainage
- Canal infrastructure
- Road culverts
- Utility crossings
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | HDPE (High-Density Polyethylene) |
| Structure | Double-wall corrugated |
| Diameter Range | 110 mm to 1000 mm |
| Ring Stiffness | SN4, SN8 |
Microduct Systems in the Marafy Project Saudi Arabia
Smart cities rely on microduct systems to deliver fiber optic communications networks.
Uses of Microduct Systems
Microduct systems may be utilized for the following applications:
FTTH connectivity
High-speed broadband services
Infrastructure for smart cities
Telecommunications backhaul.
Companies Involved in the Marafy Project Saudi Arabia Construction
Large infrastructure projects involve multiple organizations responsible for planning, construction, and utility installation.
Developer
ROSHN Group
Primary responsibilities:
- Project development
- Infrastructure planning
- Community construction
- Utility coordination
Construction and Engineering Contractors
Saudi Binladin Group
Typical responsibilities:
- Civil engineering works
- Road construction
- Infrastructure installation
Alfanar
Typical responsibilities:
- Electrical systems
- Power distribution
- Utility infrastructure
Saudi Telecom Company
Typical responsibilities:
- Telecom network installation
- Fiber-optic infrastructure
- Communication systems
Specifications Followed in the Marafy Project Saudi Arabia
The design of the marafy project’s infrastructures in Saudi Arabia follows engineering guidelines to provide long-term safe and reliable performance.
The specifications that guide these infrastructure construction projects include:
– Material properties
– Diameter of the pipes used
– Pressure ratings
– High temperature resistance
– Chemical compatibility
– Connection details
– Life expectancy of products
Following these specifications ensures that our infrastructure continues to operate safely and efficiently.
Standards Followed in the Marafy Project Saudi Arabia Construction
All infrastructure projects in Saudi Arabia should adhere to the nationally and internationally recognized engineering guidelines.
Internationally:
ISO 4427 HDPE Water Pipes
ISO 1452 PVC Pressure Pipes
EN 13476 Corrugated Drainage Pipes
ASTM F714 HDPE Pipes
ASTM D1785 PVC Pipes
Nationally:
Saudi Building Code (SBC)
Saudi Aramco Engineering Standards (SAES)
SASO Regulations
These standards ensure:
Safety
Durability
Performance
Regulatory Compliance
How Saudi Ducts Supports the Marafy Project Saudi Arabia
A well-coordinated underground infrastructure system is key to delivering the success of the Marafy Project; therefore, it is crucial that the water distribution system, stormwater drainage system, sewerage system, electrical system and large capacity fibre optic telecom network are designed and installed correctly. With the level of complexity that is involved in a waterfront project of this nature, precise coordination is required between designers, EPC contractors and suppliers.
In this ecosystem, Saudi Ducts acts as a strategic enabler by connecting the various infrastructure stakeholders with manufacturers that are certified to supply the required products, providing them with technical product information for their procurement needs, and also providing assistance with the procurement process of large scale utilities and telecommunications systems.
1. Strengthening Infrastructure Supply Chain Efficiency
For large-scale projects, such as the Marafy Project, ensuring a consistent and reliable supply chain of essential construction materials can be a challenge at best. Delays in obtaining HDPE pipes, PVC conduits, corrugated drainage systems, and Telecom ducts could create delays in the completion schedule of the project.
Saudi Ducts helps to resolve this problem by providing contractors and developers with the ability to do the following:
Quickly locate verified suppliers of HDPE, PVC, and telecom duct systems
Evaluate and compare technical specifications before making purchasing decisions
Find manufacturers who have been approved for GCC infrastructure projects
Minimise reliance on fragmented or unverified sourcing channels
By establishing structured supply chain visibility, the availability of materials is enhanced and helps to ensure that Marafy’s Infrastructure milestones in Saudi Arabia will not be delayed by procurement bottlenecks.
2. Supporting Correct Material Selection for Critical Applications
The Marafiyah project has many layers of infrastructure like the availability of water networks, drainage systems, electricity distribution lines, as well as fibre-optic connections. Each layer of this infrastructure will utilise different types of pipes and engineering-grade materials.
Saudi Ducts offer support to engineers and procurement teams in selecting appropriate materials such as:
HDPE PE100 for the pressures involved with water transmission
PVC-U for protection of electrical cables as well as gravity drainage application.
Corrugated HDPE Drainage Pipes for Storm Water and Road Crossing Drainage.
Microducts for the installation of high-density fibre optic cables.
Through the provision of structured product knowledge with the guidance on the application of those products, Saudi Ducts can help to reduce the number of engineering errors and ensure that the right components of the infrastructure are matched to their functional requirements.
3. Enhancing Telecom and Smart City Infrastructure Development
The defining characteristic of the Marafy project is the combination of smart infrastructure and digital connectivity systems. This includes fiber networks, intelligent transportation systems, and digital utility monitoring.
Saudi Ducts provides access to the following products and services to help support this transformation:
HDPE telecom duct networks
Microduct bundles for FTTH deployment
Cable protection systems and accessories
Jointing and connectivity solutions for underground telecommunications routes
These products and services are crucial components in creating a future-ready digital infrastructure backbone that will provide high-speed connectivity to all of the residential, commercial and hospitality areas in Marafy.
4. Ensuring Compliance with International and Saudi Standards
Infrastructure projects in Saudi Arabia must adhere to very stringent technical standards in order to ensure the long term durability, safety, and environmentally sustainable use.
To this end, Saudi Ducts assists with compliance by advising stakeholders on materials that comply with:
- ISO 4427 for HDPE water pipelines
- ISO 1452 for PVC pressure systems
- EN 13476 for structured wall drainage pipes
- ASTM specifications for materials performance & testing
- SBC requirements (Saudi Building Code)
- Saudi Aramco standards of engineering (when applicable)
By increasing awareness of these standards, Saudi Ducts will help ensure all materials used within a Marafi Infrastructure project will meet both national regulatory requirements and international engineering benchmarks.
5. Reducing Project Risks and Construction Delays
Building infrastructure that is large in magnitude can be subject to several risks:
- Material availability
- Specification incorrectness
- Supplier non-reliability
- Logistics and delivery delays
Saudi Ducts assists in alleviating these risks through acting as a singularly centralized technical and supplier discovery source. Giving contractors access to:
- Ability to rapidly identify multiple supply options
- Ability to validate suppliers certifications
- Ability to obtain product data sheets/specification
- Ability to effectively plan procurement
This will notably reduce construction time between phases of the Marafy Project, Saudi Arabia.
6. Supporting Sustainable and Long-Term Infrastructure Planning
The Marafy project is an ongoing urban waterfront development, so its infrastructure must be durable over many years with little upkeep.
The Marafy Project – Saudi Ducts supports the goals above through the use of materials with:
- High corrosion resistance (HDPE systems)
- Long service life (50-100+ years for PE100 pipe)
- Reduced leakage and maintenance
- Installing environmentally efficient.
These goals are consistent with the larger country objective of developing sustainable, low-maintenance, and intelligent urban areas as outlined in the Vision 2030 initiative by Saudi Arabia.
7. Enabling Collaboration Across EPC Contractors and Suppliers
The Marafy Project has many EPC contractors, consultants and sub-con, concurrently working on a multitude of different areas of the project infrastructure.
Saudi Ducts assists with the coordinated efforts of the EPC contractors by:
Connecting EPC contractors to approved manufacturers; Enabling direct communication between buyers and suppliers; Providing visibility into technical procurement decisions; Streamlining supplier evaluation processes; Thus improving collaboration efficiency within the entire supply ecosystem of the overall projects.
Final Impact on the Marafy Project Saudi Arabia
Saudi Ducts will, without a doubt, have a positive contribution to the impact of the Marafy Project in Saudi Arabia. Strengthening the underlying infrastructure supply chain, actualizing technical accuracies, and providing compliance driven procurement supporting the Marafy Project via Saudi Ducts suppliers will enhance four major components of the Marafy Project.
Saudi Ducts will support infrastructure materials being sourced efficiently, correctly applying technical specifications to the infrastructure, preparing telecom and utility systems for future use, and keeping construction schedules on time by utilizing a knowledge-based supplier discovery platform to indirectly enhance one of Saudi Arabia’s most advanced waterfront infrastructure development projects.
Conclusion – Marafy Project Saudi Arabia
Marafy Project, a premier waterfront and urban infrastructure initiative within Jeddah, is pivotal to providing practical support for the Kingdom’s reliance on the implementation of its long-term goals as expressed in Saudi Vision 2030. In addition to providing an area for residential living, tourism, and transportation, as well as a sophisticated ecosystem of utility systems, the Marafy Project is an example of the application of a smart urban ecosystem that supports a complete built environment.
A major contributor to the success of the Marafy Project is the development of engineered underground infrastructure systems (e.g., water supply, sewer, and storm drainage, electrical conduits, and fibre optic telecommunication networks) constructed using long-lasting, highly engineered materials (e.g., high density polyethylene [HDPE] pipes, polyvinyl chloride [PVC] conduits, corrugated drainage systems, and various microduct solutions) to ensure reliability, long-term resiliency to environmental conditions, and conformance with the strict engineering standards of both the Kingdom and internationally recognised engineering practices.
In addition to the use of highly engineered materials to construct large infrastructure systems, a high degree of collaboration between developers, EPC contractors, and suppliers is necessary to be successful. Saudi Ducts provides assistance to the infrastructure ecosystem by supporting infrastructure contractors and engineers to identify certified manufacturers, and provides assistance in understanding the technical specifications related to those reliable products that support the construction of the utility systems and telecommunications systems.
By providing enhanced procurement efficiencies, improved technical knowledge, and ongoing support for standards compliance, Saudi Ducts continues to make an indirect contribution to the realisation of the Kingdom’s vision by supporting the construction of the Marafy Project
FAQs – Marafy Project Saudi Arabia
1. What is Marafy Project of Saudi Arabia?
Marafy Project is a massive urban waterfront development located on Jeddah’s city waterfront that includes residential, commercial, tourism, and infrastructure developments built around a manmade canal system.
2. Where is Marafy Project Located?
Marafy Project is based on Jeddah’s city waterfront along the Red Sea corridor connecting the existing inland urban districts with the existing township.
3. What are the Key Objectives of the Project?
To build a smart dock & city development demonstrating integrated infrastructure, transportation systems, tourism facilities, and sustainable urban development, consistent with the Saudi Vision 2030 objectives.
4. What Infrastructure Is Used?
Water supply distribution systems, sewerage networks, stormwater drains, electrical conduits, telecommunications fibre optic networks, and roadway.
5. What Pipe Materials Are Used?
Depending upon specific application requirements, polyethylene high-density (HDPE), polyvinyl chloride (PVC) and HDPE corrugated pipe and microduct systems.
6. Why does the Marafy Project use HDPE pipes?
HDPE pipes are preferred for use in the Marafy Project because they are durable, resistant to corrosion, flexible and last a long time. These are essential criteria for water and telecommunications systems.
7. What are the standards followed in the Marafy Project?
The standards that govern the Marafy Project include but are not limited to the ISO (ISO4427 and ISO1452), ASTM standards and EN standards as well as the Saudi Building Code.
8. Who is developing the Marafy Project?
The development of the Marafy project is being done by ROSHN Group, a large developer in the Kingdom of Saudi Arabia and under supervision of the Public Investment Fund (PIF).
9. What is the role of telecommunications in the Marafy Project?
Telecommunications infrastructure at Marafy will consist of systems that provide residences and businesses with access to fibre optic internet connections, smart city infrastructure and digital communications.
10. How does Saudi Ducts help the Marafy Project?
Saudi Ducts helps the Marafy Project by connecting contractors with suppliers of materials such as HDPE, PVC, Corrugated Pipes and Telecommunications duct systems who have been verified and approved; and by providing technical assistance and the standards they must adhere to.
